MacNeil BMX Parts

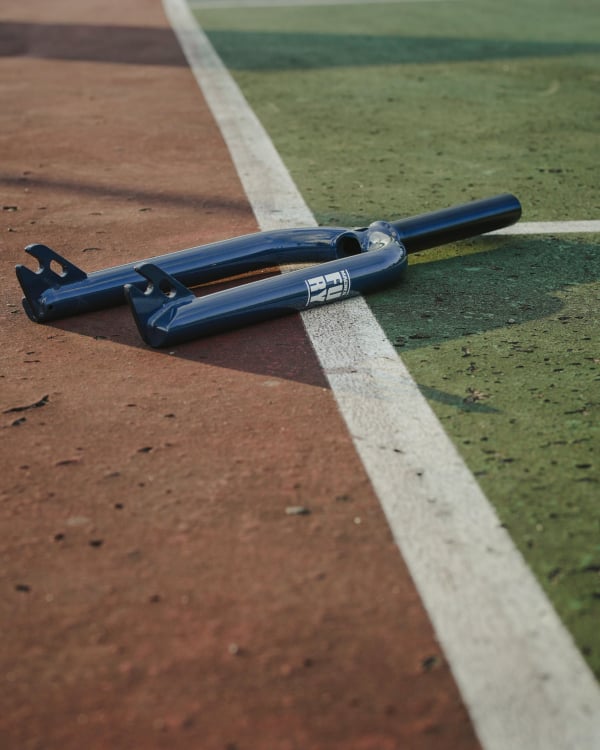

MACNEIL PARLIAMENT FORK

100 % heat treated 4130 chromoly - Butted & tapered fork legs, Integrated headset race - One-piece machined steer tube with special flat wall for extra strenght - 4.5mm thick investment cast dropouts, 10mm only - 28mm offset - Clearance for massive tires and a bent rim - Weight: 800grams/1.8lbs (w/o top cap)

= Trans Black
= ED Black

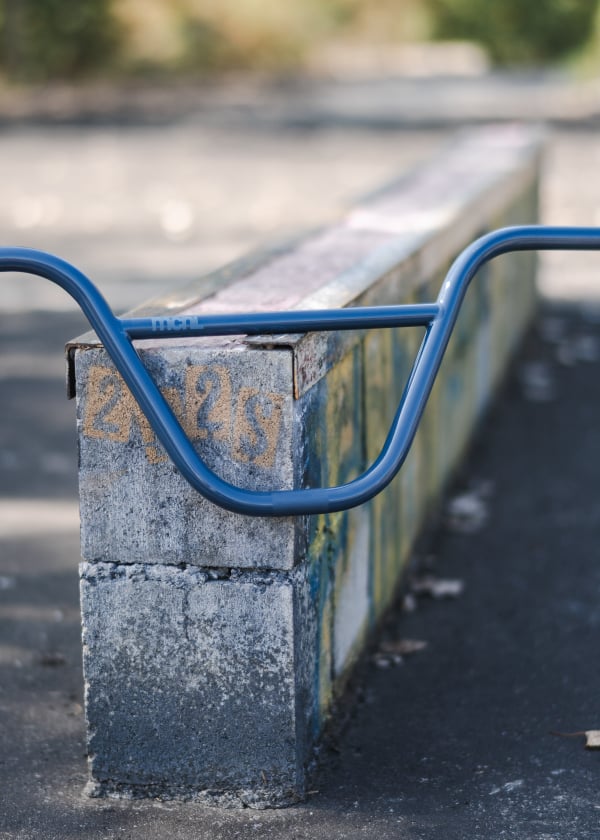

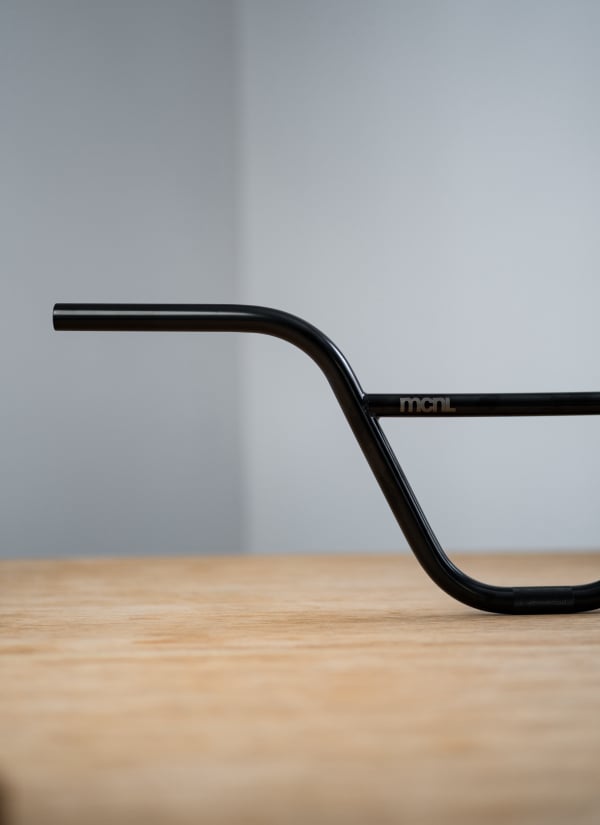

MACNEIL DEFAULT BARS

Full post weld heat treatment - 19mm OD cross bar - Straight guage tubing - Black ED dipped to prevent corrosion - Colors: ED Black, Chrome - Rise 8.7” - Width 28” - Sweep 11 degrees - Upsweep 1 degrees - Weight: 843g / 30oz

= ED Black

MACNEIL TABARNAK BARS

Full post weld heat treatment. - 19mm OD cross bar - Multi butted tubing - Black ED dipped to prevent corrosion - Masked off stem clamping section - Rise 8.75’’, 9’’, 9.5” - Width 30” - Sweep 12 degrees - Upsweep 1 degrees - Weight: 812 to 879 grams

= ED Black
= Chrome
= Gloss Clear

MACNEIL HEADSET

Integrated 1 1/8” Headset - Alloy top cap with Laser etched MacNeil logos - Aluminum compression wedge and lower bearing race - Campy compatible 45º x 45º, 41.8mm OD bearings - Weight: 60 grams

= Black

MACNEIL APEX TOP LOAD STEM

CNC Machined from 6061 aluminum - 48mm reach - 28mm stack - Relieved to reduce weight - True Topload style - Weight: 317 grams

= Black

MACNEIL BOTTOM BRACKETS

Spanish 22mm Black - Mid 22mm black

= Black

MACNEIL CONNECT CRANKS

Investment cast pedal and spindle bosses - RHD or LHD compatible - Gun-drilled hollow 22mm spindle - Micro-drive compatible - Slideable box-style arm design - 175mm only - Weight: 28.8 oz

= Chrome
= Matte Black
= Black

MACNEIL LAMBO V2 SPROCKET

6mm thick - CNCed from 6061 Aluminum - 22mm centre hole with 19mm adaptor -Sizes: 25t, 28t - Weight: 25t -71 grams

= Black
= Polished

MACNEIL LIGHT V3 SPROCKET

6mm thick - CNCed from 6061 aluminum - 22mm centre hole with 19mm adaptor - Sizes: 25t, 28t - Weight: 25t - 61 grams

= Polished
= Black

MACNEIL COUGAR CROMO SPLINED SPROCKET

Super stiff - Super light - 4mm thickness - Spline drive - 25t

= Black

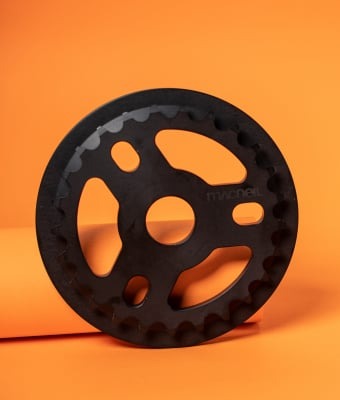

MACNEIL GUARD SPROCKET

The one that started it all - One piece sprocket/guard combo - 6mm thick - CNC'd from 6061 aluminum - 22mm centre hole with 19mm adaptor - Three crank mounting options for rotation- Sizes: 25t, 28t - Weight: 136 grams (25T)

= Matte Black

MACNEIL STREET PEGS

Fast sliding heat treated chromoly - Internally machined - 14mm with 10mm adaptor - Sold individually - Weight: TBD

= Black

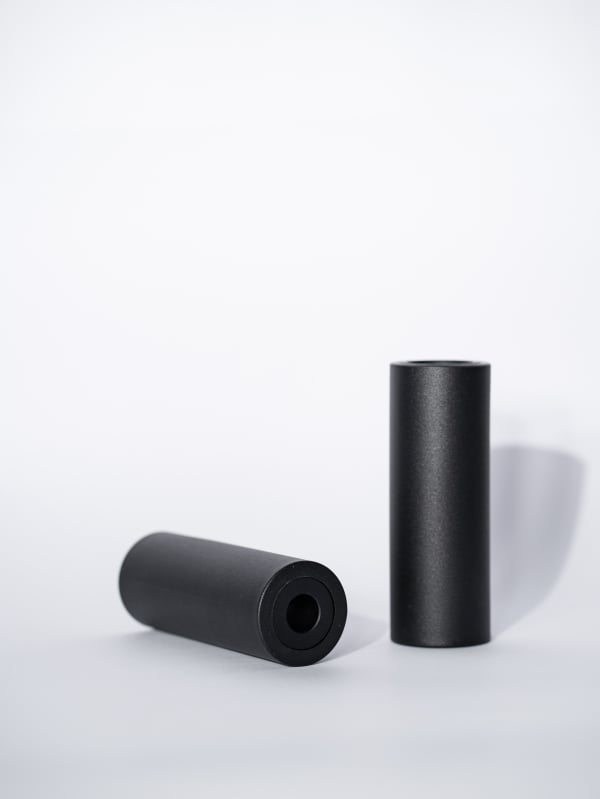

MACNEIL BLACK ICE NYLON PEGS

Aluminum peg with plastic sleeve - 14mm with 10mm adaptor - Sold individually - Replacement sleeves are available

= Black

MACNEIL NETWORK FRONT HUB

Chromoly female axle with 17mm bolts broached for a 6mm allen key - 36 hole only - High-quality Japanese body bearings - Aluminum hardware - Weight: 258 grams

= Matte Black
= Polished

MACNEIL NETWORK CASETTE HUB

36 hole only - High-quality Japanese body bearings - One-piece 9T driver with 3 Japanese bearings - Switch Drive System (SDS) allows for easy switch between LHD and RHD - Dialed 3-pawl engagement system - Available with female axle or traditional straight axle system - Aluminum hardware - Weight: 470 grams

= Matte Black
= Polished

MACNEIL ROCKFORD FREECOASTER

Designed using patented KHE technology - One-piece 9T driver - Available in either LHD and RHD - Female axle - 36 hole only - Aluminum hardware - Weight: TBD

= Polished
= Black

MACNEIL NETWORK HUBGUARD

The Network hub guards are designed to work with our new Network hubs as well as our classic Primary hubs. Similar to our Primary hub guards but now featuring a press-fit design rather than thread on. Machined from 7075 aluminum for better sliding and long life. - Weight: 55 grams

= Black

MACNEIL NETWORK FRONT WHEEL

Our Dub rim cross-laced to our Network front hub - Female axle - Weight: 892 gram

= Matte Black
= Polished

MACNEIL NETWORK CASETTE WHEEL

Our Dub rim cross-laced to our Network cassette hub - 9T cassette only (Switch Drive System for RHD or LHD) - Available with either 14mm straight axle or a female axle - Weight: 1115 grams

= Matte Black
= Polished

MACNEIL ROCKFORD FREECOASTER WHEEL

Our Dub rim cross-laced to our new Rockford Freecoasterhub - 9T driver - Available in either RHD or LHD - Female axle

= Matte Black

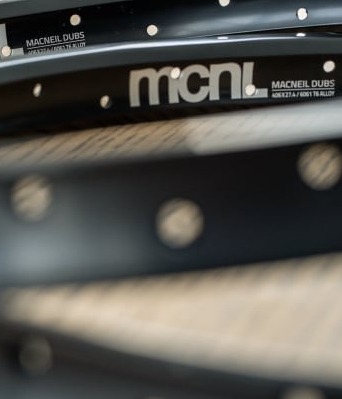

MACNEIL DUB RIMS

Welded joint - Cross lace design - 6061 T6 material - 36 hole only - Double wall construction - No drilled out nonsense - ERD 392 - Weight: 446 grams

= Black

MACNEIL LOW LIFE TIRE

Knurled surface - 20 X 2.4 - 100PSI - Weight: 726g / 25.6oz

= Black

MACNEIL SLASHER TIRE

Non-knurled surface - 20 X 2.4 - 65PSI - Weight: 771g / 27.2oz

= Gum
= Red

MACNEIL VALVE CAPS

Valve Cap come in pair - 5 colors

= Red
= Black
= Green
= Purple
= Blue

MACNEIL DEFGRIPS

MacNeil X Defgrip collaboration - Soft Krayton rubber - Flangeless - Durable nylon barends - Classic mushroom design for comfort

= Clear
= Blue
= Black
= Orange
= Gum
= Red

MACNEIL NYLIST PEDALS

Durable nylon material impregnated with glass fibers - Looseball bearings - Heavy knurling and large pins for improved traction - Weight: 194 grams each

= Black
= Red
= Blue

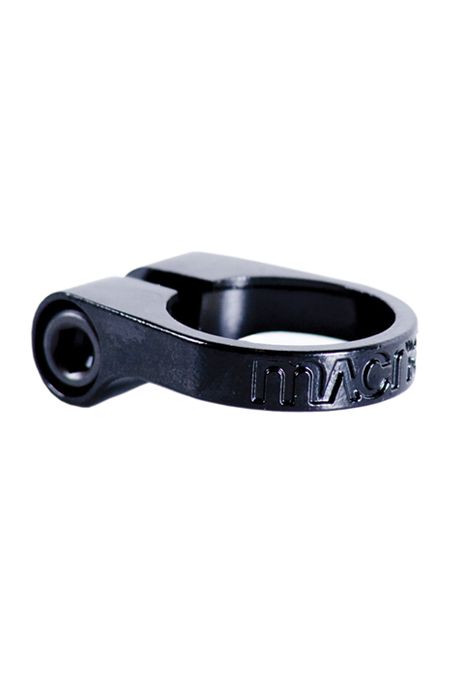

MACNEIL SEAT CLAMP

28.6mm ID (works with 25.4mm posts) - Investment cast steel with MacNeil logo

= ED Black
= Chrome
= Red

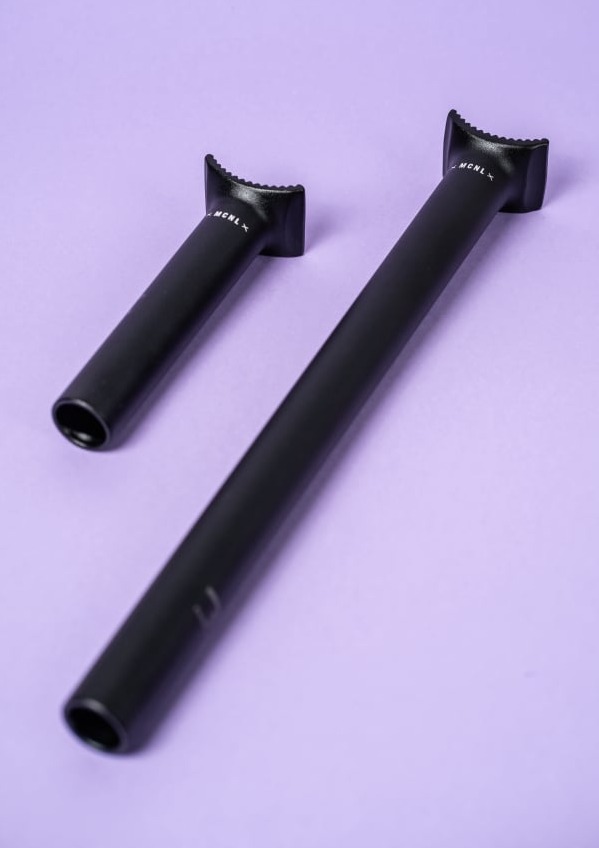

MACNEIL PIVOTAL STEALTH POST

Uses patented Pivotal technology - 6061 Aluminum - 3D forged construction - 135mm long - Sizes: 25.4mm OD - Weight: 99g

= Matte Black

MACNEIL PIVOTAL STEALTH V2 330MM

Uses patented Pivotal technology - 6061 Aluminum
3D forged construction - 330mm long - Sizes/Weight: 25.4mm (206g), 27.2mm (202g), 30.9mm (182g), 31.6mm (211g)

= Matte Black

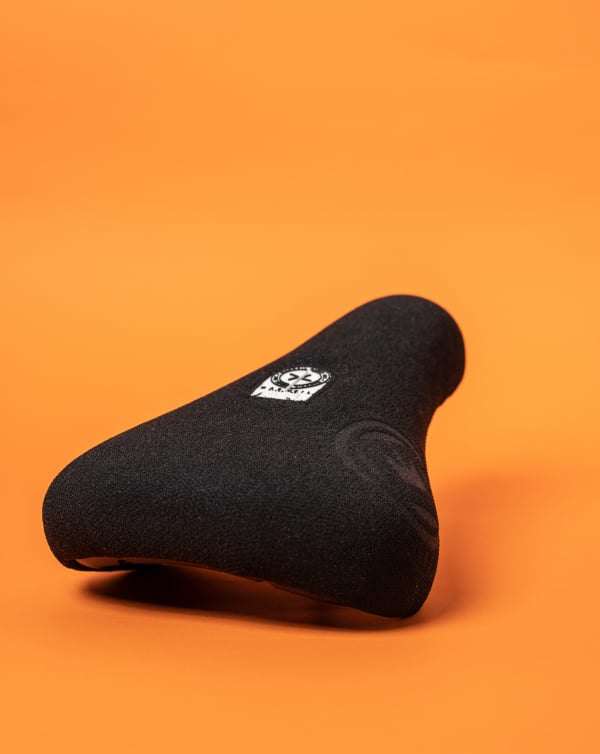

MACNEIL FAT CAPITAL PIVOTAL SEAT

Thick foam in case you plan on sitting on it - Patented Pivotal Technology - No rails to bend or twist - No ugly/heavy guts showing - Weight: 300 grams

= Black

MACNEIL SILVA PIVOTAL STEALTH SEAT

Chris Silva signature seat -Thick foam in case you plan on sitting on it - Patented Pivotal Technology - No rails to bend or twist - No ugly/heavy guts showing - Weight: 300 grams

= Black

➞ WANNA BUY MACNEIL PARTS ?

Any bike shop in Canada can buy our products! Shipped in 24-72hrs depending on location. Please contact us so we can refer you to the closest retailer in your area!
